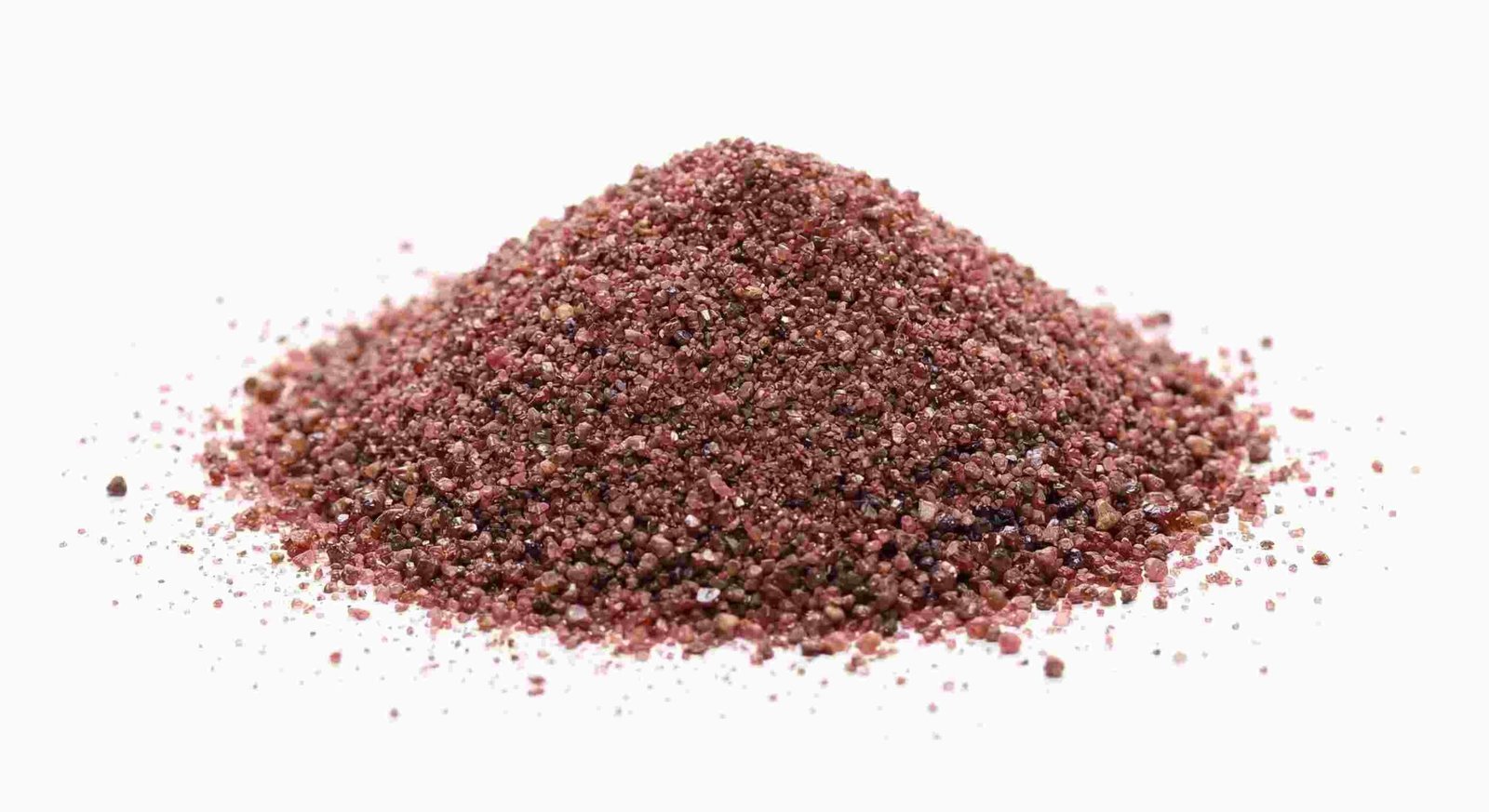

Garnet abrasive
Reliable Abrasive for Waterjet Cutting & Surface Blasting
- High hardness (7.5-8 Mohs) for aggressive yet controlled abrasion.
- Low dust and non-toxic composition for safer work environments.
- Recyclable up to 5-6 times, lowering overall costs by 30-50%.
- Versatile mesh sizes for precision in blasting and cutting.
- Environmentally sustainable with minimal free silica (<1%).
- Efficiency and Speed: Cuts blasting time by 30-50% with high specific gravity and sharp grains, reducing labor and media consumption (e.g., 10-20% lower than slag).
- Safety and Health: Low dust minimizes inhalation risks; silica-free (<1%) prevents silicosis; non-toxic and inert for marine/offshore use.
- Cost-Effectiveness: Recyclable 3-6 times; lower disposal costs due to non-hazardous waste classification.
- Environmental Compliance: Eco-friendly with no heavy metals; aligns with REACH/RoHS; sustainable mining practices.
- Performance Reliability: Consistent profiles (2.5-4.5 mils) for better coating adhesion; minimal embedment (<1%) ensures clean surfaces.
- Versatility: Effective in wet/dry blasting; durable under high pressure without fracturing excessively.
TECHNICAL SPECIFICATIONS
Mineral Composition
| Mineral | Typical Range (%) |
|---|---|
| Almandine Garnet | 93-98 |
| Ilmenite | <2 |
| Quartz (Free Silica) | <1 |
| Others | <2 |
Chemical Composition
| Component | Typical Range (%) |
|---|---|
| SiO₂ | 31-38 |
| Al₂O₃ | 20-22 |
| FeO + Fe₂O₃ | 28-37 |
| MgO | 6-8 |
| CaO | 1-2 |
| TiO₂ | 0.5-1 |
| MnO | 0.5-0.6 |
| Others | <1 (traces) |
Physical Properties
- Hardness: 7-8 Mohs – Balances aggressiveness with minimal equipment wear.
- Specific Gravity: 3.5-4.3 g/cm³ – Promotes rapid settling and efficient media flow.
- Bulk Density: 1.9-2.4 g/cm³ (120-150 lbs/ft³) – Optimizes storage and handling.
- Grain Shape: Sharp angular/sub-angular – Maximizes cutting speed and surface profile.
- Melting Point: 1250-1320°C – Heat-stable for demanding environments.
- Acid Solubility (HCl): <1% – Chemically inert for broad compatibility.
- pH Value: >7 (neutral-alkaline) – Low corrosion risk.
- Conductivity: <15-125 µS/cm – Suitable for sensitive water-based systems.
- Chloride Content: <20-50 ppm – Prevents rust on blasted surfaces.
- Dust Generation: Low – Enhances visibility and safety.
Gradation (Mesh Size Analysis)
30/60 Mesh (Versatile Blasting)
| US Mesh | Opening (mm) | Typical Retention (%) |
|---|---|---|
| 20 | 0.85 | 0-5 |
| 30 | 0.60 | 0-5 |
| 40 | 0.425 | 15-30 |
| 50 | 0.30 | 40-60 |
| 60 | 0.25 | 10-25 |
| Pan | <0.25 | 5-10 |
80 Mesh (Waterjet/Precision):
| US Mesh | Opening (mm) | Typical Retention (%) |
|---|---|---|
| 50 | 0.30 | 0-5 |
| 60 | 0.25 | 5-15 |
| 70 | 0.212 | 20-30 |
| 80 | 0.18 | 20-50 |
| 100 | 0.15 | 5-10 |
| Pan | <0.15 | 0-5 |
- Consumption Rate: 1.5-3.0 lbs/ft² (blasting); 10-20% lower than alternatives.
- Blasting Rate: 18-30 m²/hr – Up to 50% faster project completion.
- Surface Profile: 2.5-4.5 mils (65-115 µm) – Adjustable by mesh for coating adhesion.
- Embedment: <1% – Clean surfaces without residue.
Application areas

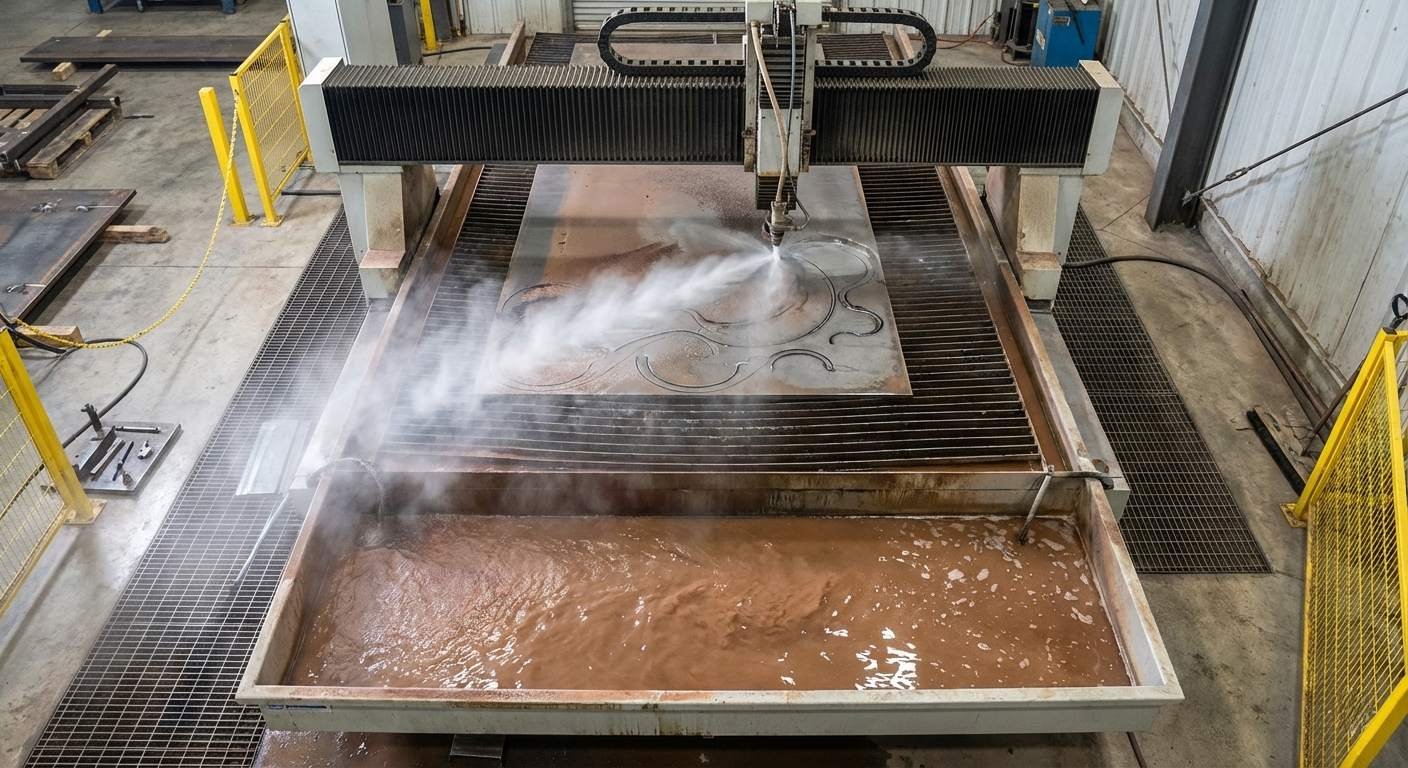

Waterjet Cutting

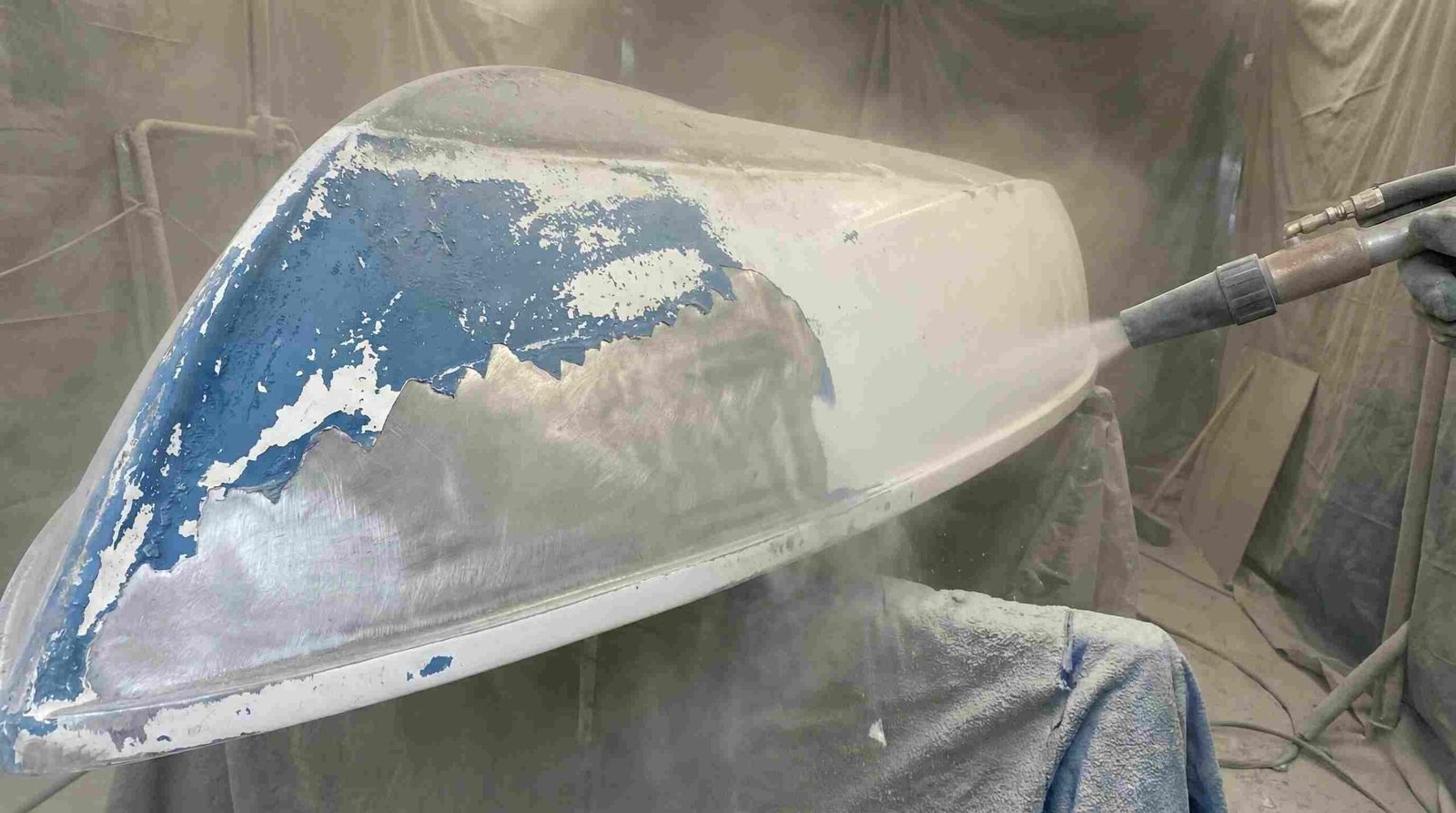

Abrasive Blasting
Surface Preparation

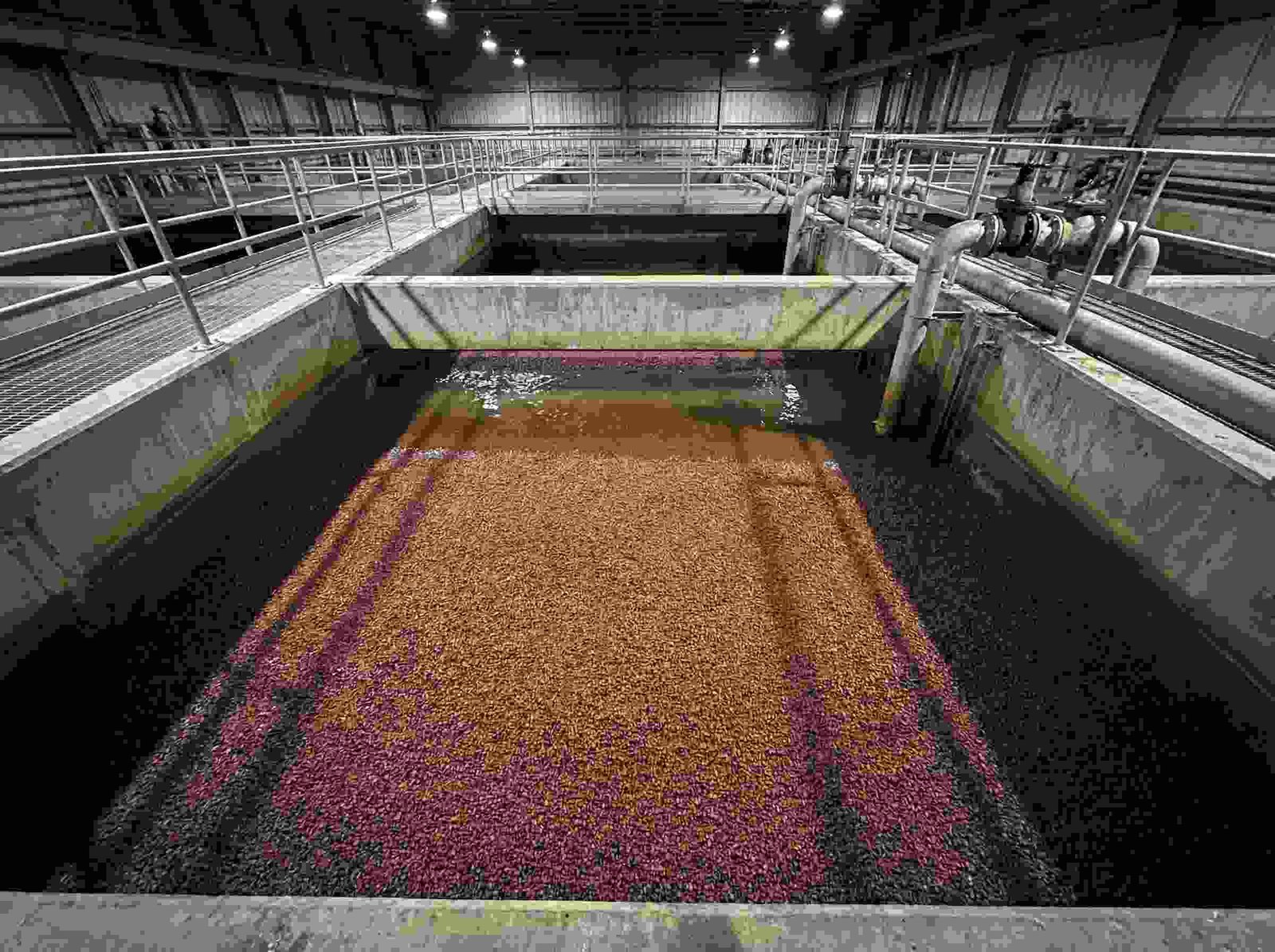

Filtration
PACKAGING AND LOGISTICS
tandard Packaging: 25-50 kg HDPE bags or 1-2.2 MT bulk bags; palletized (40-60 bags/pallet).
Pallet Configuration: Shrink-wrapped wooden pallets; customizable for shipping.
Secure steel drums for high-purity powders. We offer full OEM private labeling to build your brand.
- Shipping: From major ports; HS Code 2513.20.
- Storage: Dry, covered; unlimited shelf life if moisture-free.
Ready to boost your efficiency with premium Garnet Sand?
Contact us for a free sample, customized bulk quote, or full data sheet download.
